Hot Selling Ip67 Dc to Dc Buck boost Converter 13.8v to 13.8v 20a with Over Current protection

1 / 5

Hot Selling Ip67 Dc to Dc Buck boost Converter 13.8v to 13.8v 20a with Over Current protection

Send Inquiry

Product Description

Product Features

✔

Synchronous rectification technology, imported components, conversion efficiency more than 96%

✔

Imported internal resistance capacitor filter, withstand high temperature.

✔

Organic silicone packaging technology, can work directly soaked in water

✔

Chip smart protection, anti-overheating, overcurrent protection

✔

Aluminum alloy shell, anti-shock, anti-drop, anti-moisture, anti-dust and so on

Specifications

Model Number	VT-DD13.813.820
Input Rated voltage	DC 13.8V
Input Voltage range	DC 9-40V
Output Voltage	DC 13.8V
Output Max rated current	20A
Output Type	Single
Output Max rated power	276W
Voltage regulation	±1%
Load regulation	2%
No load loss	44mA
Ripple & noise	300mV (full load)
Working temperature	—40°C~80°C
Working humidity	10% ~ 90%
Storage temperature	-40 ~ +100°C

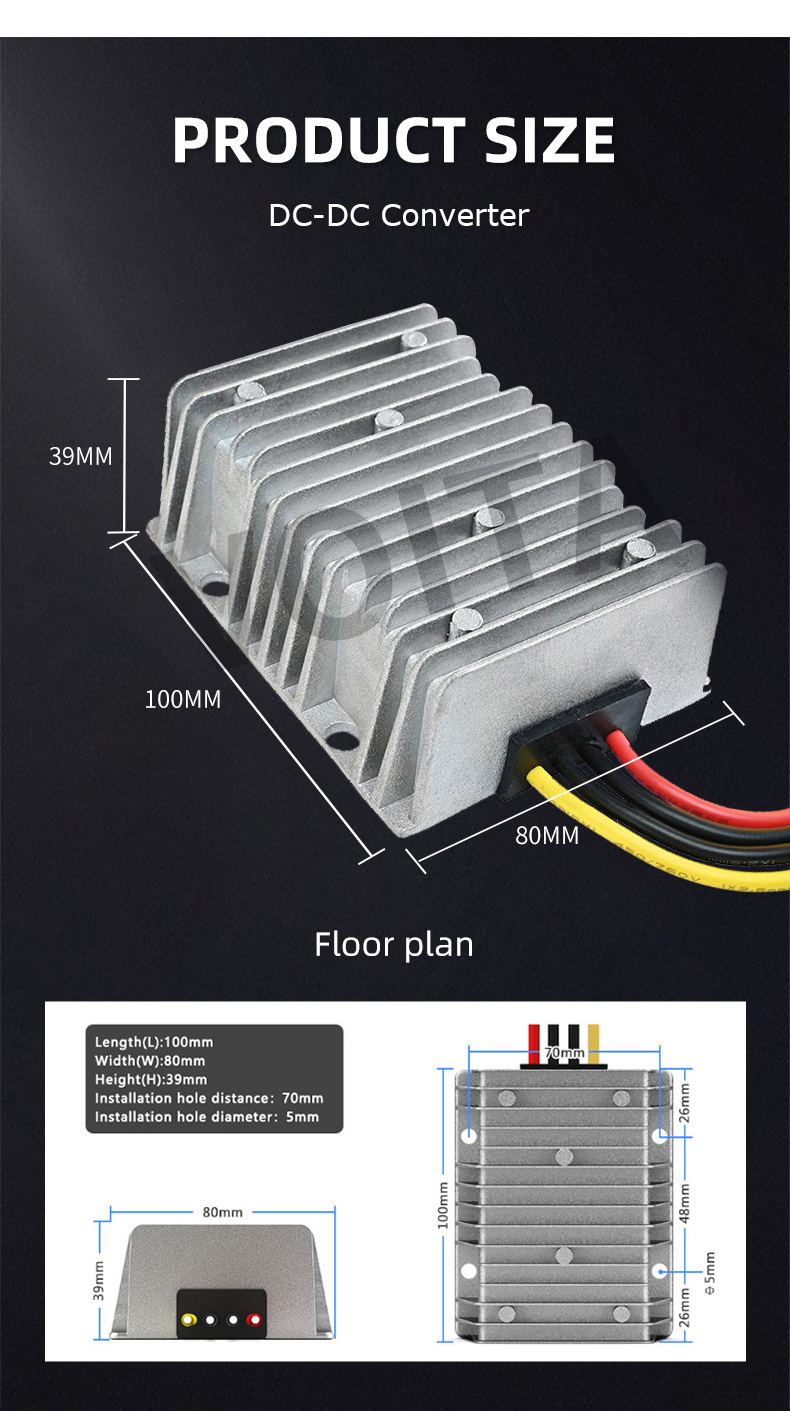

Size	1008039mm
Net Weight	500g

Product Details

Factory & Production Display

Frequently Asked Questions

What is the energy conversion efficiency of this device?

This product utilizes synchronous rectification technology and high-quality imported components, achieving a conversion efficiency of more than 96%.

Is the unit waterproof and suitable for harsh environments?

Yes, it uses organic silicone packaging technology, making it waterproof (it can even work directly soaked in water) as well as anti-shock, anti-drop, and anti-dust.

What safety protections are built into the device?

The device features chip smart protection, which includes anti-overheating and overcurrent protection to ensure stable and safe operation.

What is the operating temperature range?

The device is designed to work reliably in extreme temperatures ranging from -40°C to 80°C.

What are the input voltage requirements?

The rated input is DC 13.8V, but it can handle a wide input voltage range from DC 9V to 40V while maintaining a stable DC 13.8V output.

What material is used for the outer casing?

The product is housed in a high-durability aluminum alloy shell, which provides excellent protection against physical damage and moisture.

Product Detail

Hot Selling Ip67 Dc to Dc Buck boost Converter 13.8v to 13.8v 20a with Over Current protection

Product Description
